Product Overview

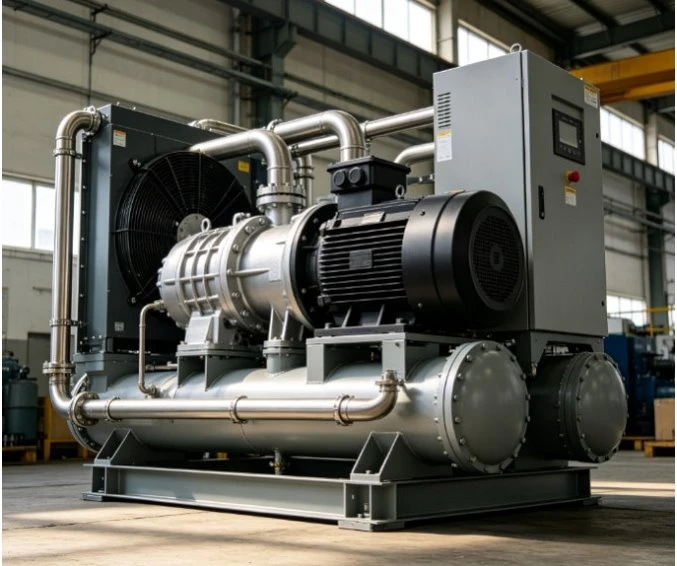

A Permanent Magnet VSD Screw Compressor combines a rotary screw compression element, a permanent magnet motor, and variable speed drive control to match compressed air production with changing demand.
Instead of operating continuously at one fixed speed, the compressor adjusts motor speed according to system pressure and air consumption. This operating principle minimizes unnecessary unloaded operation and improves energy efficiency in compressed air systems experiencing fluctuating demand cycles.
These compressors are deployed in industrial plants where air consumption varies significantly across production shifts, machine cycles, or seasonal operating periods.
Technical Specifications
|
Parameter Category |
Specification Details |
|
Air Delivery (FAD) |
0.5 to 45.0 cubic meters per minute based on pressure and motor configuration |
|
Working Pressure |
Standard industrial ratings at 7 bar, 8 bar, 10 bar, and 13 bar |
|
Drive System |
Direct drive coupling connecting the permanent magnet motor to the air-end |
|
Inverter Technology |
Vector control variable speed drive for precise speed regulation and low harmonics |
|
Motor Type |
Permanent Magnet Synchronous Motor (PMSM) engineered for high thermal stability |
|
Motor Efficiency |
Premium industrial efficiency class matching IE4 performance benchmarks |
|
Protection Class |
Enclosure rating compliant with standard industrial dust and moisture requirements (IP54) |
|
Cooling Method |
Air-cooled package with combination heat exchangers for ambient temperatures up to 45 degrees Celsius |
|
Noise Level |
Acoustic enclosure maintaining sound pressure levels between 72 and 85 decibels |
Key Benefits for Industrial Air Systems
Reduction of Unloaded Power Consumption
Fixed-speed compressors consume significant electrical power while running unloaded. Variable speed control allows the compressor to throttle output downward when air demand decreases, eliminating unnecessary power waste during partial-load operations.
Tighter System Pressure Stability
The drive regulates output dynamically to counter pressure drops in real time, maintaining a narrow operating pressure band. Stable header pressure also allows plant engineers to lower baseline pressure settings across the pneumatic network.
Responsive Output for Variable Demands
Rather than generating a fixed volume of air continuously, the compressor output scales automatically. This aligns production directly with active factory equipment requirements.
Complete Compressed Air System Integration
A compressor cannot be optimized in isolation. System performance depends on:
Air Receiver Sizing: Smooths out transient demand spikes and prevents rapid motor cycling.
Pipeline Network Design: Proper pipe diameters minimize terminal pressure drops.
Leakage Management: Eliminates costly compressed air loss across fittings, valves, and legacy hoses.
Downstream Treatment: Dryers and multi-stage filters must be sized to match peak flow rates and dew-point requirements.
Typical Industrial Applications
General Manufacturing: Powers pneumatic tools, assembly line actuators, and automated handling equipment.
CNC and Metal Processing: Supplies air for high-speed machining centers, pneumatic clamping jigs, and automated chip removal systems.
Packaging and Assembly: Accommodates fluctuating line speeds where air demand shifts dynamically.
Food and Beverage Processing: Integrates with rigorous downstream air treatment systems to meet strict air purity and moisture-control standards.
Automotive Production: Supports complex robotic welding lines, paint shops, and synchronized tooling stations.
Electronics Manufacturing: Delivers stable, dry, and reliable air required for sensitive circuit board assembly and component handling.
Compliance, Electrical Standards and Safety
For industrial installations across North America, Europe, and international markets, proper compliance safeguards system longevity and operational safety:
Electrical Design: Motor and inverter drive configurations engineered to match standard industrial grids with standard voltage and frequency options.
Enclosure and Cooling: Designed for rated ambient temperature limits with efficient ventilation or water-cooling options to prevent thermal derating.
Safety Protections: Integrated phase-loss protection, over-pressure relief valves, emergency stop integration, and thermal overload monitoring.
Maintenance and Consumables Lifecycle
Long-term operating reliability depends on structured service intervals and straightforward access to maintenance points:
Routine Inspections
Daily checks for oil level, operating temperatures, and pressure differentials.
Consumable Service Items
Periodic replacement schedules for air filters, oil filters, and air/oil separator elements based on operating hours.
Service Accessibility
Removable enclosure panels designed to simplify routine servicing, fluid changes, and cooler cleaning.
FAQ
Q: What is the primary operational advantage of a Permanent Magnet VSD Screw Compressor?
A: Its main advantage is the ability to automatically match motor speed and air output to fluctuating system demand, reducing power waste during unloaded running conditions.
Q: Is a variable speed compressor suitable for continuous, steady air demand?
A: While it can operate under steady loads, the economic justification depends heavily on the facility's load profile. Fixed-speed units are often equally viable for constant, uninterrupted baseline demands.
Q: What parameters are required to size a compressor correctly?
A: Accurate sizing requires verified air consumption data (FAD), peak and minimum load points, required working pressure, daily operating hours, and local environmental conditions.
Q: Can these compressors be integrated directly with air dryers and line filters?
A: Yes. Complete packages or modular setups can include integrated or standalone drying and filtration equipment matched to required industrial air quality standards.
Q: How do I initiate a technical evaluation for my facility?
A: Submit your operational air requirements, working pressure limits, and plant load characteristics to receive a detailed technical configuration and system matching analysis.
